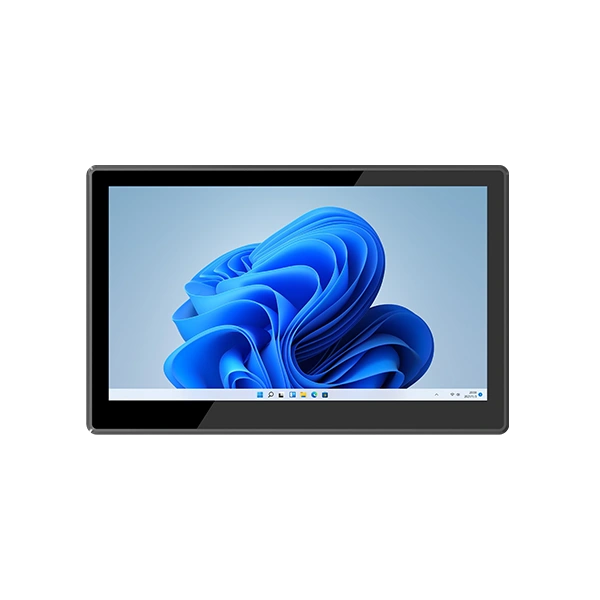

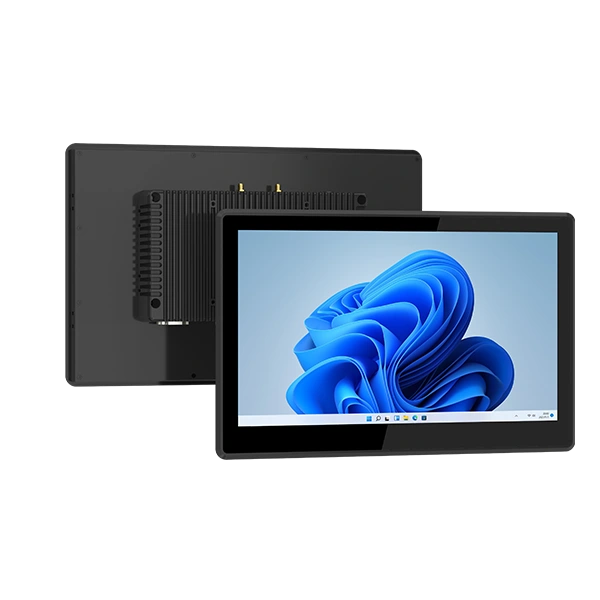

● Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress.
● Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system
● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

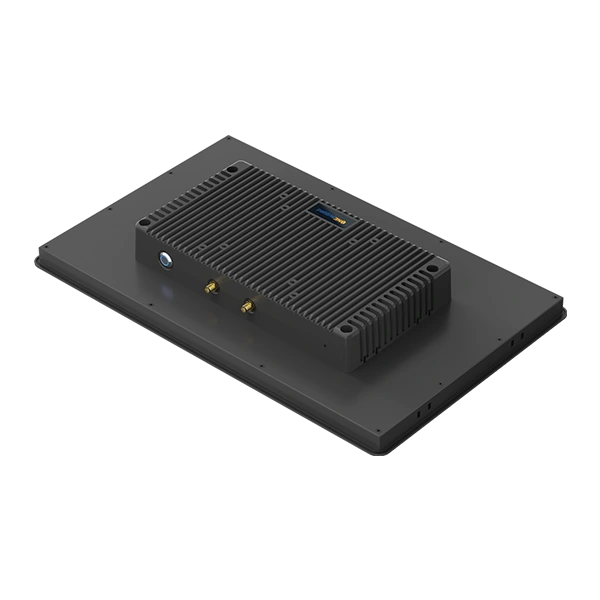

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life
● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements
N5100
windows 11
15.6 inch
220cd/㎡
1920*1080
wifi
Running 24/7 without
Rich interface extensions
storage expansion
IP65 ● Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress.
● Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system
● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities
● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life
● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements
● Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface), multiple network connection modes
● Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions
● Standard PPC mounting hook component, easy to install and supports various installation
| ONERugged P15J | |
| CPU | Intel®Celeron N5100, up to 2.80GHz |
| Memory | 4GB |
| USB | 2 x USB3.0, 2 x USB2.0 |
| OS support | Windows 11 IOT Optional：Windows 11 Pro Windows 10 Pro/IOT/Home |
| System Parameter | |
| CPU | Intel® Celeron N5100 CPU, up to 2.80GHz |
| Chipset | Intel UHD |
| RAM | Onboard 4GB |
| Storage | 64GB |

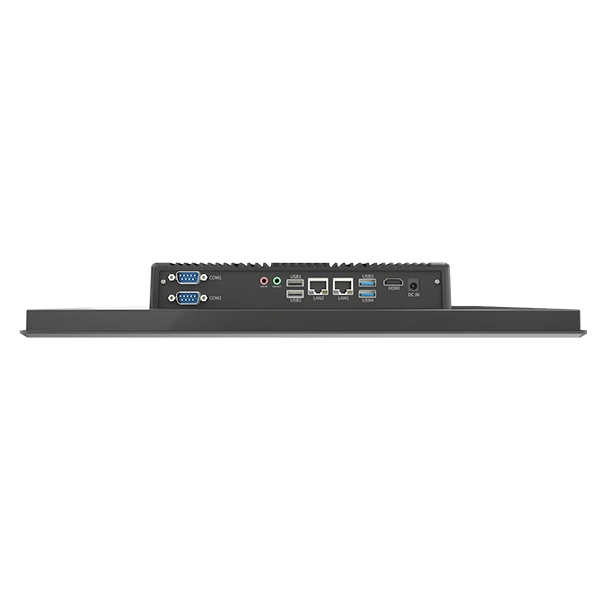

| I/O | USB3.0*2 USB2.0*2 Power interface DC 12V Power connector *1 Standard Earphone Jack *1 RJ45 *2 DB9 PORT RS232 *2 HDMI 2.0a Mini *1 |
| Expansion Slot | M2 x 1 |
| OS | Windows 11 IOT Optional：Windows 11 Pro Windows 10 Pro/IOT/Home |
| Display | |
| Size | 15.6" TFT-LCD 16 : 9 |
| Resolution | 1920 x 1080 |
| Brightness | 220cd/m 2 |
| Touch Pane | 10 point capacitive touch screen |
| Power | |
| DC | AC100V ~ 240V, 50Hz/60Hz, DC 12V/4A |
| Product Form | |
| Dimension | 388.63 x 248.43 x 54.95 mm |
| Device Color | black |
| Weight | 2.4Kg |
| Reliability | |
| IP Code | IP65 of front panel |
| Operate Temperature | -20℃ to 60℃ |
| Store Temperature | -30℃ to 70℃ |
| Humidity | 95%@40℃, Non-Condensing |
Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
